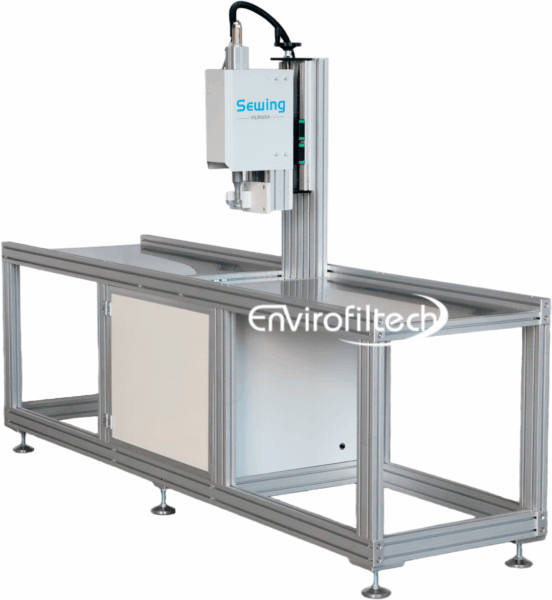

Filter Cartridge Strap Joint Welding Machine

Description

The filter cartridge strap joint welding machine significantly improves the strength, stability, and appearance of filter cartridge strap joints. It is an essential piece of equipment for modern, automated filter cartridge production lines, especially for manufacturers seeking high efficiency and consistent product quality.

Working Principle

The machine uses high-frequency ultrasonic vibrations to generate frictional heat at the strap joint, causing the material to melt and fuse instantly. This process completes a strong weld without glue or stitching, resulting in a smooth, clean joint with high strength.

Basic Parameters

Item	Specification
Power	2 kW
Rated Voltage	AC 220 V
Rated Frequency	50 Hz
Dimension	4000 × 700 × 1550 mm
Ultrasonic Parameter	20 kHz
Speed	5 pcs / min
Depth of Pleat	18 – 50 mm
Filter Cartridge Diameter	130 – 350 mm

Key Features

• Strong welds: High joint strength, resistant to breakage, suitable for long-term use.
• No consumables: No glue or thread required, reducing production costs.
• Clean appearance: Smooth welds with no burrs or burn marks.
• High efficiency: Ideal for continuous production with excellent stability.
• Easy operation: Adjustable parameters to suit different cartridge sizes.
• Consistent quality: Stable welding performance ensures uniform products.

Advantages over Traditional Methods

Main Applications

• Used for dust collection filter cartridges, industrial air filter cartridges, and liquid filter cartridges.
• Suitable for connecting PP, PET, polyester, nonwoven, or composite material straps.
• Widely applied in dust collector manufacturing, environmental protection equipment, and filter cartridge production lines.
