Air slide fabrics are used in different industries:
| Power stations | filtered dust |
| flue ash | |
| discharging flue ash | |
| coal dust | |
| Building and Construction | cement |
| furnace dust | |
| gypsum | |
| limestone | |
| finely ground quartz | |
| calcium hydroxide | |
| lead monoxide | |
| burnt lime | |
| acid crystals | |
| pure clay | |
| phosphates | |
| magnesite concentrate | |
| finely ground fluorid | |
| production of Aluminum | |
| Chemical Industry | Thomas meal (fertilizer) |
| rubber compounds | |
| sinter dust | |
| catalysts | |
| sodium sulfate | |
| wash powder | |
| Foodstuff/Feed | flour products |
| semolina feed | |
| Surface coating | synthetic granulates |
| powder coating |
Air slide fabrics are used in various kinds of machinery:
| Silos/Tanks | discharging systems |
| warehouse units | |
| mixing equipment | |
| homogenizing systems | |
| Chute bottoms | conveyor systems |
| ventilator systems | |
| aeration systems | |
| Vehicles | silo truck discharging cones |
| railway wagon discharging cones | |
| vessels aeration & discharging bottoms | |
| container aeration & discharging bottoms | |
| Powder coating machinery | bottoms for sinter basin |
Technical Data

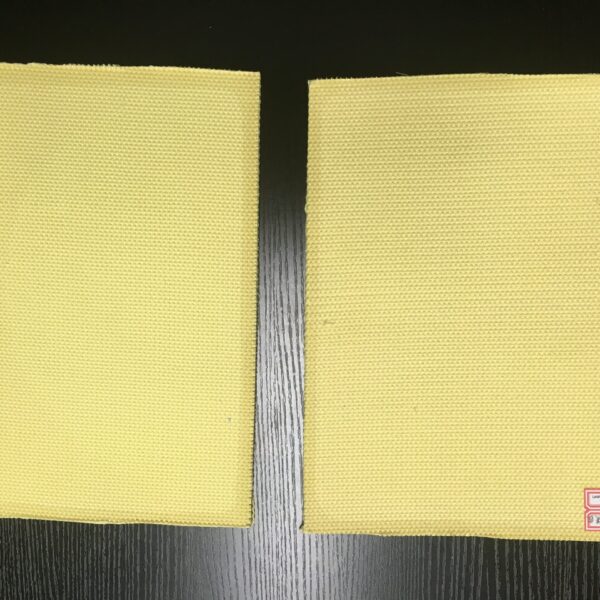

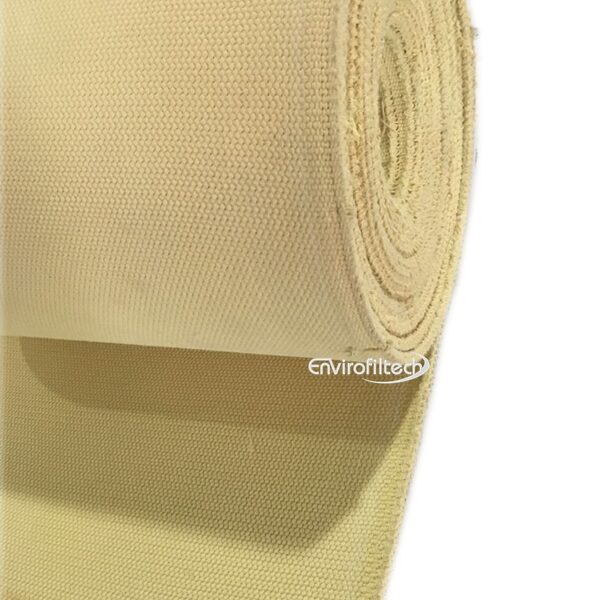

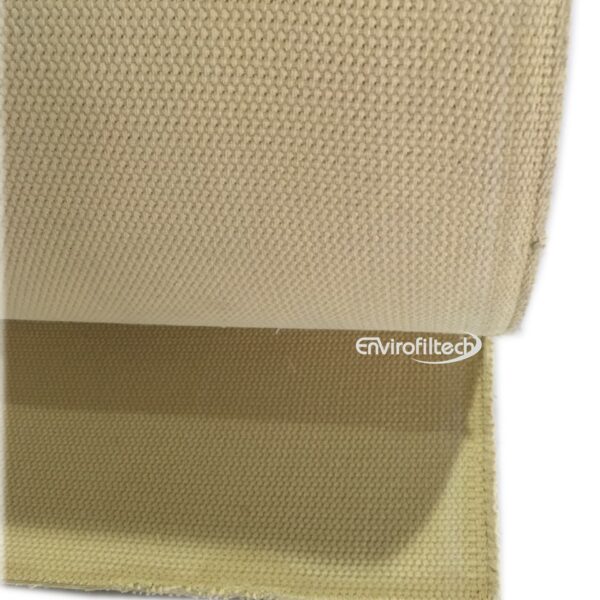

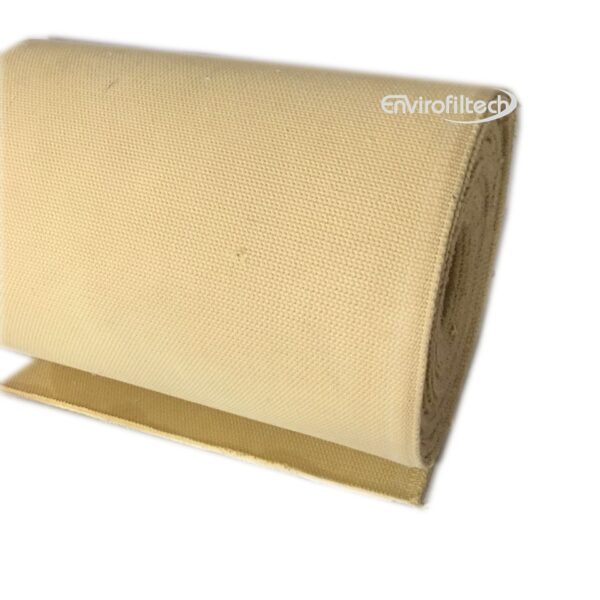

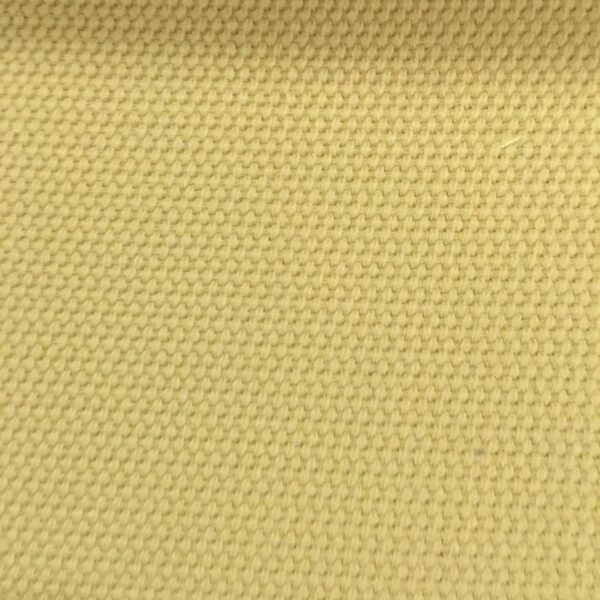

Aramid air slide canvas (5mm)
| Product Code | ESNMX-SP5 |
| weight | 3200 gsm+/- 5% |
| Thickness | 5mm+/-0.3mm |
| Air permeability | 100 L/m2.s+/- 10% |
| Elongation (Strength:2000N/2cm )
Warp weft |
3% 2.0% |
| Working temperature | 204 ℃ – 240 ℃ |
Aramid air slide canvas (6mm)
| Product Code | ESNMX-SP6 |
| weight | 3800 gsm+/- 5% |
| Thickness | 6mm+/-0.3mm |
| Air permeability | 95 L/m2.s+/- 10% |
| Elongation (Strength:2000N/2cm )
Warp weft |
3% 2.0% |
| Working temperature | 204 ℃ – 240 ℃ |
Above data are the averages obtained from a series of typical by our lab and just for reference only.
